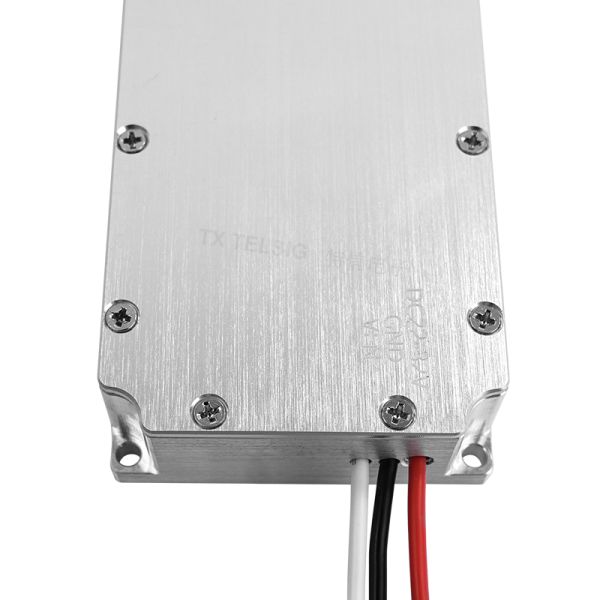

Tailor-made frequency 400-3800MHz 100W 24V-28V Voltage Regulator drone jammer module

Brand Name : TeXin

Model Number : TX-P100VGHN

Certification : SGS,ISO9001,ROHS

Place of Origin : Shenzhen China

MOQ : 1

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 10000pcs per month

Delivery Time : 5-8 days

Packaging Details : Durable case or box

Brand : Texin

Power : 50W 100W

Frequency : 400-3800MHz

Voltage : 24-28V

Gain : 47dbm /50dbm

Type : jammer module

Application : Air protection

Size : 130*53*19

Weight : 263g

Contact Now

Tailor-made Frequency 400-3800MHz 100W 24V-28V Voltage Regulator Drone Jammer Module

This high-power 100W 24V-28V voltage regulator drone jammer module is designed by Shen Zhen Texin. The module's key feature is stable 100W output at 24V-28V, which greatly enhances work efficiency and provides customers with two different voltage options. The efficiency remains consistent whether operating at 24V or 28V. For those experiencing interference from illegal drone FPV systems, this 24V-28V 100W 400-3800MHz module offers a high-quality drone jamming solution.

Key Features
  • Jams illegal drone FPV signals to protect safety and security
  • Covers main FPV drone frequencies including 868MHz, 915MHz, 1.2GHz, 1.5GHz, and 2.4GHz
  • 24V-28V stable output of 100W with high operational efficiency
  • Customizable frequency range from 400-3800MHz
  • Compatible with both fixed jammer devices and portable jammer devices
  • Suitable for use in airports, prisons, power stations, and security applications
Technical Specifications
No. Item Data Unit Notes
1 Frequency 400-3800 MHz
2 Work Temperature -20~+70 ℃
3 Max Output Power 100 W
4 Work Voltage DC24-28 V
5 Max Gain 50 dB
6 Flatness ±3 dB
7 Max Current 7 A
8 Output VSWR ≤1.5
9 Output Connector SMA/F 50Ω Customized
10 Power Amplifier Efficiency 45 when Max Output
11 Switch Control high low level current V 0V off /0.6 on
12 Standing Wave Protection OK
13 Temperature Protection 75° ℃
14 Size 53*139*19 mm
15 Weight 0.263 Kg
Tailor-made frequency 400-3800MHz 100W 24V-28V Voltage Regulator drone jammer module Tailor-made frequency 400-3800MHz 100W 24V-28V Voltage Regulator drone jammer module
Frequently Asked Questions
Are there any requirements for the operating environment of the module? What is its lifespan?

With an operating temperature range of -20℃ to +65℃, it can operate normally in both the frigid north and the scorching south. Under normal use, its service life can reach 5 years. No complicated maintenance is required in daily life; only periodic checks of the interface and heat dissipation are needed.

Are there discounts for bulk purchases? What is the lead time?

Bulk purchases are eligible for tiered discounts; the larger the purchase volume, the lower the unit price. For specific discount details, please consult customer service. Delivery time depends on the purchase volume and customization requirements. Regular non-customized items are shipped in 3-7 days, while customized items are shipped in 7-15 days. Bulk customization can be expedited through negotiation to ensure that your equipment assembly and project implementation are not delayed.

What is the core function of this 100W voltage-stabilized drone jamming module?

Its core function is to suppress the signals normally received by drones by emitting high-power stable jamming signals that are consistent with the frequency bands of drone remote control, image transmission and navigation, so as to enable drones to return to home, make forced landings or hover. It is mainly used for low-altitude security and drone countermeasures. As a core component of vehicle-mounted jammers, portable jamming guns and fixed base stations, it protects the low-altitude security of the area.
